SSM整合
2026年1月26日大约 6 分钟
SSM整合
1. 创建Maven项目，导入依赖
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<maven.compiler.source>1.8</maven.compiler.source>
<maven.compiler.target>1.8</maven.compiler.target>
<!-- 锁定版本信息 -->
<!-- spring相关版本 -->
<spring.version>5.2.8.RELEASE</spring.version>
<!-- mybatis版本 -->
<mybatis.version>3.5.5</mybatis.version>
<!-- mybatis-spring版本 -->
<mybatis-spring.version>2.0.5</mybatis-spring.version>
<!-- mysql版本 -->
<mysql.version>5.1.37</mysql.version>
<!-- fast json版本 -->
<fast-json.version>1.2.75</fast-json.version>
<!-- jackson版本 -->
<jackson.version>2.11.2</jackson.version>
</properties>
<!-- 依赖坐标 -->
<dependencies>
<!-- spring相关 -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjweaver</artifactId>
<version>1.8.7</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-tx</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- mybatis相关 -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>${mybatis.version}</version>
</dependency>
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>${mybatis-spring.version}</version>
</dependency>
<!-- mysql -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>${mysql.version}</version>
</dependency>
<!--日志-->
<dependency>
<groupId>commons-logging</groupId>
<artifactId>commons-logging</artifactId>
<version>1.2</version>
</dependency>
<!-- DBCP数据源 -->
<dependency>
<groupId>commons-dbcp</groupId>
<artifactId>commons-dbcp</artifactId>
<version>1.4</version>
</dependency>
<!-- log4j -->
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>1.2.17</version>
</dependency>
<!-- 单元测试 -->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.13</version>
<scope>test</scope>
</dependency>
<!-- spring web -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-web</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- spring mvc -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- jsp -->
<dependency>
<groupId>javax.servlet.jsp</groupId>
<artifactId>jsp-api</artifactId>
<version>2.2</version>
<scope>provided</scope>
</dependency>
<!-- servlet -->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
<version>4.0.1</version>
<scope>provided</scope>
</dependency>
<!-- JSR 303依赖 -->
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-validator</artifactId>
<version>5.4.3.Final</version>
</dependency>
<!-- fast json -->
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>${fast-json.version}</version>
</dependency>
<!--jackson-->
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-core</artifactId>
<version>${jackson.version}</version>
</dependency>
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-databind</artifactId>
<version>${jackson.version}</version>
</dependency>
<!-- commons-io -->
<dependency>
<groupId>commons-io</groupId>
<artifactId>commons-io</artifactId>
<version>2.7</version>
</dependency>
<!-- commons-fileupload -->
<dependency>
<groupId>commons-fileupload</groupId>
<artifactId>commons-fileupload</artifactId>
<version>1.4</version>
</dependency>
<!--jstl标签-->
<dependency>
<groupId>jstl</groupId>
<artifactId>jstl</artifactId>
<version>1.2</version>
</dependency>
<!-- pagehelper -->
<dependency>
<groupId>com.github.pagehelper</groupId>
<artifactId>pagehelper</artifactId>
<version>5.2.0</version>
</dependency>
</dependencies>注意：若想要把Mapper的映射文件放在src/main/java目录下，则要在pom.xml文件中添加以下配置
<build>
<resources>
<resource>
<directory>src/main/resources</directory>
<includes>
<include>**/*.xml</include>
<include>**/*.properties</include>
</includes>
<filtering>true</filtering>
</resource>
<resource>
<directory>src/main/java</directory>
<includes>
<include>**/*.properties</include>
<include>**/*.xml</include>
</includes>
<filtering>true</filtering>
</resource>
</resources>
</build>2. 在 resources文件夹下创建相应配置文件
2.1 applicationContext.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx.xsd
http://www.springframework.org/schema/aop
http://www.springframework.org/schema/aop/spring-aop.xsd">
<!-- 扫描注解所在的包 -->
<context:component-scan base-package="com.eobard.dao,com.eobard.service"/>
<!-- 引入database.properties属性文件 -->
<bean class="org.springframework.context.support.PropertySourcesPlaceholderConfigurer">
<property name="location">
<value>classpath:db.properties</value>
</property>
</bean>
<!-- 配置数据源dataSource -->
<bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource">
<!--驱动-->
<property name="driverClassName" value="${jdbc.driver}"/>
<!--连接字符串-->
<property name="url" value="${jdbc.url}"/>
<!--数据库用户名-->
<property name="username" value="${jdbc.user}"/>
<!--数据库密码-->
<property name="password" value="${jdbc.password}"/>
</bean>
<!-- 配置SqlSessionFactoryBean:如果未来要使用MP，这里的class就需要换成MP的类 -->
<bean id ="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<!-- 引用数据源 -->
<property name="dataSource" ref="dataSource"/>
<!-- 加载MyBatis配置文件 -->
<property name="configLocation" value="classpath:mybatis-config.xml"/>
<!-- 加载src/main/resource文件下的SQL映射文件 -->
<property name="mapperLocations" value="classpath:mapper/**/*.xml"/>
<!--若想要加载src/main/java文件下则使用下列属性-->
<!--
<property name="mapperLocations" value="classpath:com/eobard/dao/**/*.xml"/>
-->
</bean>
<!-- 使用mybatis-plus的MybatisSqlSessionFactoryBean
<bean id="sqlSessionFactory" class="com.baomidou.mybatisplus.extension.spring.MybatisSqlSessionFactoryBean">
<property name="dataSource" ref="dataSource"/>
<property name="configLocation" value="classpath:mybatis-config.xml"/>
<property name="typeAliasesPackage" value="com.eobard.entity"></property>
<property name="mapperLocations" value="classpath:mapper/**/*.xml" />
</bean>-->
<!-- 加载mapper所在的包 -->
<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
<!-- 扫描mapper接口所在的位置 -->
<property name="basePackage" value="com.eobard.dao"/>
</bean>
<!-- 定义事务管理器 -->
<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<property name="dataSource" ref="dataSource"/>
</bean>
<!-- 开启注解式事务 -->
<tx:annotation-driven transaction-manager="transactionManager"/>
</beans>注意：不管使用了src/main/java还是src/main/resource的方法，都要在对应的路径下创建Mapper.xml映射文件，否则SSM环境搭建好了之后会启动不了
2.2 db.properties
jdbc.driver = com.mysql.jdbc.Driver
jdbc.url = jdbc:mysql://localhost:3306/ssm?useUnicode=true&characterEncoding=utf-8
jdbc.user = root
jdbc.password = 1234562.3 log4j.properties
log4j.rootLogger=debug,con
log4j.appender.con=org.apache.log4j.ConsoleAppender
log4j.appender.con.layout=org.apache.log4j.PatternLayout
log4j.appender.con.layout.ConversionPattern=%d{MM-dd HH:mm:ss}[%p]%c%n -%m%n2.4 mybatis-config.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<settings>
<!-- 显示日志信息 -->
<setting name="logImpl" value="LOG4J"/>
</settings>
<typeAliases>
<!-- 设置别名 -->
<package name="com.eobard.entity"/>
</typeAliases>
</configuration>2.5 springmvc.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:aop="http://www.springframework.org/schema/aop"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/mvc
http://www.springframework.org/schema/mvc/spring-mvc.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/aop
http://www.springframework.org/schema/aop/spring-aop.xsd">
<!-- 加载控制器所在的包 -->
<context:component-scan base-package="com.eobard.controller"/>
<!-- 配置视图解析器 -->
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<!-- 视图前缀（页面在哪个目录下） -->
<property name="prefix" value="/WEB-INF/jsp/"/>
<!-- 视图后缀(页面的后缀名是什么) -->
<property name="suffix" value=".jsp"/>
</bean>
<!-- 加载静态资源 -->
<mvc:resources mapping="/statics/**" location="/statics/"/>
<!-- 开启注解支持 -->
<mvc:annotation-driven>
<mvc:message-converters>
<!-- 配置编码字符集 -->
<!-- 配置响应编码字符集 -->
<bean class="org.springframework.http.converter.StringHttpMessageConverter">
<property name="supportedMediaTypes">
<list>
<value>text/html;charset=UTF-8</value>
<value>application/json;charset=UTF-8</value>
<value>text/plain;charset=UTF-8</value>
<value>application/xml;charset=UTF-8</value>
</list>
</property>
</bean>
<!-- 配置Jackson消息转换器 -->
<bean class="org.springframework.http.converter.json.MappingJackson2HttpMessageConverter">
<property name="objectMapper">
<bean class="com.fasterxml.jackson.databind.ObjectMapper">
<!-- 格式化日期 -->
<property name="dateFormat">
<bean class="java.text.SimpleDateFormat">
<constructor-arg type="java.lang.String" value="yyyy-MM-dd" />
</bean>
</property>
</bean>
</property>
</bean>
</mvc:message-converters>
</mvc:annotation-driven>
<!-- 配置文件解析器对象，要求id名称必须是multipartResolver -->
<bean id="multipartResolver"
class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
<!-- 设置文件上传限制大小为10M -->
<property name="maxUploadSize" value="10485760"/>
</bean>
</beans>2.6 根据路径创建Mapper文件

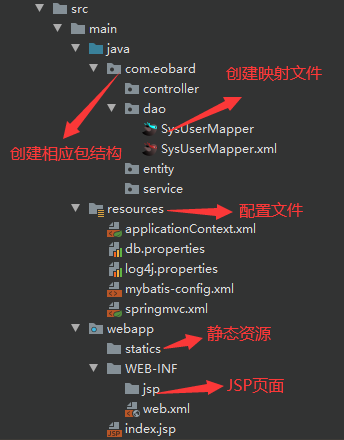

根据applicationContext.xml文件的mapperLocations属性，在对应的路径下创建映射文件，该文件夹用于存放Mapper.xml文件
3. 修改webapp的web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
version="4.0">
<!-- 设置欢迎界面 -->
<welcome-file-list>
<welcome-file>login.jsp</welcome-file>
</welcome-file-list>
<!-- 加载spring配置文件 -->
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<!-- 上下文参数配置 -->
<context-param>
<param-name>contextConfigLocation</param-name>
<!-- 使用*号通配符，通配符前面的字符要一致 -->
<param-value>classpath:applicationContext*.xml</param-value>
</context-param>
<!-- 加载springmvc配置文件 -->
<servlet>
<!-- servlet名称，名称自定义，名称唯一 -->
<servlet-name>springmvc</servlet-name>
<!-- 前端控制器，SpringMVC核心控制器 -->
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<!-- web项目启动，立即加载springmvc配置文件 -->
<init-param>
<param-name>contextConfigLocation</param-name>
<!-- springmvc配置文件位置 -->
<param-value>classpath:springmvc.xml</param-value>
</init-param>
</servlet>
<servlet-mapping>
<!-- servlet名称，名称自定义 -->
<servlet-name>springmvc</servlet-name>
<!-- 访问路径-->
<url-pattern>/</url-pattern>
</servlet-mapping>
<!-- 配置过滤器 -->
<!--配置解决中文乱码的过滤器-->
<filter>
<filter-name>encodingFilter</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>UTF-8</param-value>
</init-param>
<init-param>
<param-name>forceEncoding</param-name>
<param-value>true</param-value>
</init-param>
</filter>
<!--配置过滤器的url映射路径-->
<filter-mapping>
<filter-name>encodingFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
</web-app>4. 根据配置文件，创建相应的包结构
com.eobard.entity
com.eobard.dao
com.eobard.service
com.eobard.controller
....省略其它包
5.项目截图
